MAXSORB™ Acoustical Rigid Fiberglass Panels
All acoustic board is NOT created equal. MAXSORB™ panels use a 6 PCF high-density rigid fiberglass core for superior sound absorption and higher NRC performance than lower-density options. Available in 1″ (NRC 0.85) and 2″ (NRC 1.15) thicknesses, MAXSORB™ unwrapped acoustic panels deliver reliable sound absorption for a wide range of commercial and industrial applications. The increased density improves acoustic performance across frequencies for clearer, quieter spaces.
Raw Board Flexibility
These unwrapped panels give you full versatility for commercial, industrial and DIY applications:
- Install as-is for a cost-effective noise reduction solution
- Use behind walls, above ceilings, or inside enclosures
- Create your own DIY panels with Guilford of Maine Anchorage, FR701, Whisper or miscellaneous acoustic fabrics
Key Benefits
- High sound absorption reduces echo and reverberation
- Improved clarity and comfort in commercial and industrial spaces
- Class A fire-rated for safety
Ideal Applications
Open offices, restaurants, manufacturing spaces, studios, and above-ceiling or behind-wall treatments, plus DIY acoustic panel projects.
47 1/2″ x 12″ Package Options
1″ Panels:
- (12) panels, 47 1/2″ x 12″ x 1″
- Covers 48 sq. ft.
- Approximately 7 yards of acoustic fabric required for full coverage (sold separately)
- Best for light commercial and residential use
2″ Panels:
- (6) panels, 47 1/2″ x 12″ x 2″
- Covers 24 sq. ft.
- Approximately 4 yards of acoustic fabric required for full coverage (sold separately)
- Delivers maximum absorption per square foot of space in larger, louder areas and industrial environments
| Sound Absorption at Various Frequencies | ||||||
|---|---|---|---|---|---|---|
| Frequency (Hz) | 125 | 250 | 500 | 1000 | 2000 | 4000 |
| Fiberglass 1" NRC (.85) | .14 | .27 | .80 | 1.11 | 1.14 | 1.14 |
| Fiberglass 2" NRC (1.15) | .22 | .81 | 1.24 | 1.30 | 1.21 | 1.16 |
| Details and Specifications | |
|---|---|
| Size | 12" x 12" 47 1/2" x 12" |
| Thickness | 1", 2" |
| Weight | 1" = 3 lbs, 2" = 4.4 lbs |
| Core | Acoustically Rated Fiberglass |
| Core Density | 6 pounds per cubic foot (6 PCF) |
| Design | Frameless |
| Flammability Rating | Class A |
| Architectural Product Reference | Sound Absorbing Wall Unit |
Frequently Asked Questions View All FAQs
Our products are safe and effective and have been tested by an independent lab. All our panels and clouds carry a Class A fire rating which is the highest rating possible under the ASTM E84, a test used by code officials and regulatory agencies in the acceptance of interior finish materials.
We offer our panels, clouds and panel kits in 1 and 2 inch thicknesses.
- A 1 inch thickness is ideal for residential spaces with minimal people.
- A 2 inch thickness is suited to commercial spaces such as restaurants, offices, houses of worship and auditoriums. A 2 Inch thickness is also ideal for maximum absorption per square foot of space.
When it comes to determining the right amount of acoustic treatment, there’s no one-size-fits-all answer. For example, a conference room with 10 people, a restaurant with 100 guests and exposed ductwork, or a music studio all require different acoustic treatment strategies.
The ideal number of acoustic panels and/or ceiling clouds depends on several factors unique to your space. These include:
- Room dimensions (length, width, ceiling height)
- Available wall and ceiling space
- Flooring materials (carpet, hardwood, concrete, etc.)
- Wall and ceiling construction materials (brick, drywall, exposed, drop-ceiling, etc.)
- Furnishings
- Intended use of the space
- Number of people who typically occupy the space
Not sure where to start? We’re here to help.
Simply complete our inquiry form and provide as much detail as possible, including:
- Room dimensions (length, width, ceiling height)
- Room materials and finishes
- Details of how the space is/will be used
- Photos (if possible) always help
Our team will review and provide recommendations specific to your acoustic needs and performance goals.
Our products are safe and effective and have been tested by an independent lab. All our panels and clouds carry a Class A fire rating which is the highest rating possible under the ASTM E84, a test used by code officials and regulatory agencies in the acceptance of interior finish materials.
We offer our panels, clouds and panel kits in 1 and 2 inch thicknesses.
- A 1 inch thickness is ideal for residential spaces with minimal people.
- A 2 inch thickness is suited to commercial spaces such as restaurants, offices, houses of worship and auditoriums. A 2 Inch thickness is also ideal for maximum absorption per square foot of space.
When it comes to determining the right amount of acoustic treatment, there’s no one-size-fits-all answer. For example, a conference room with 10 people, a restaurant with 100 guests and exposed ductwork, or a music studio all require different acoustic treatment strategies.
The ideal number of acoustic panels and/or ceiling clouds depends on several factors unique to your space. These include:
- Room dimensions (length, width, ceiling height)
- Available wall and ceiling space
- Flooring materials (carpet, hardwood, concrete, etc.)
- Wall and ceiling construction materials (brick, drywall, exposed, drop-ceiling, etc.)
- Furnishings
- Intended use of the space
- Number of people who typically occupy the space
Not sure where to start? We’re here to help.
Simply complete our inquiry form and provide as much detail as possible, including:
- Room dimensions (length, width, ceiling height)
- Room materials and finishes
- Details of how the space is/will be used
- Photos (if possible) always help
Our team will review and provide recommendations specific to your acoustic needs and performance goals.
For more information, click here.
Related Product Collateral
Commercial Spaces
House of Worship Spaces
Residential Spaces
Auditoriums
Classrooms
Conference Rooms
Gymnasiums
Restaurants Customer photos and videos

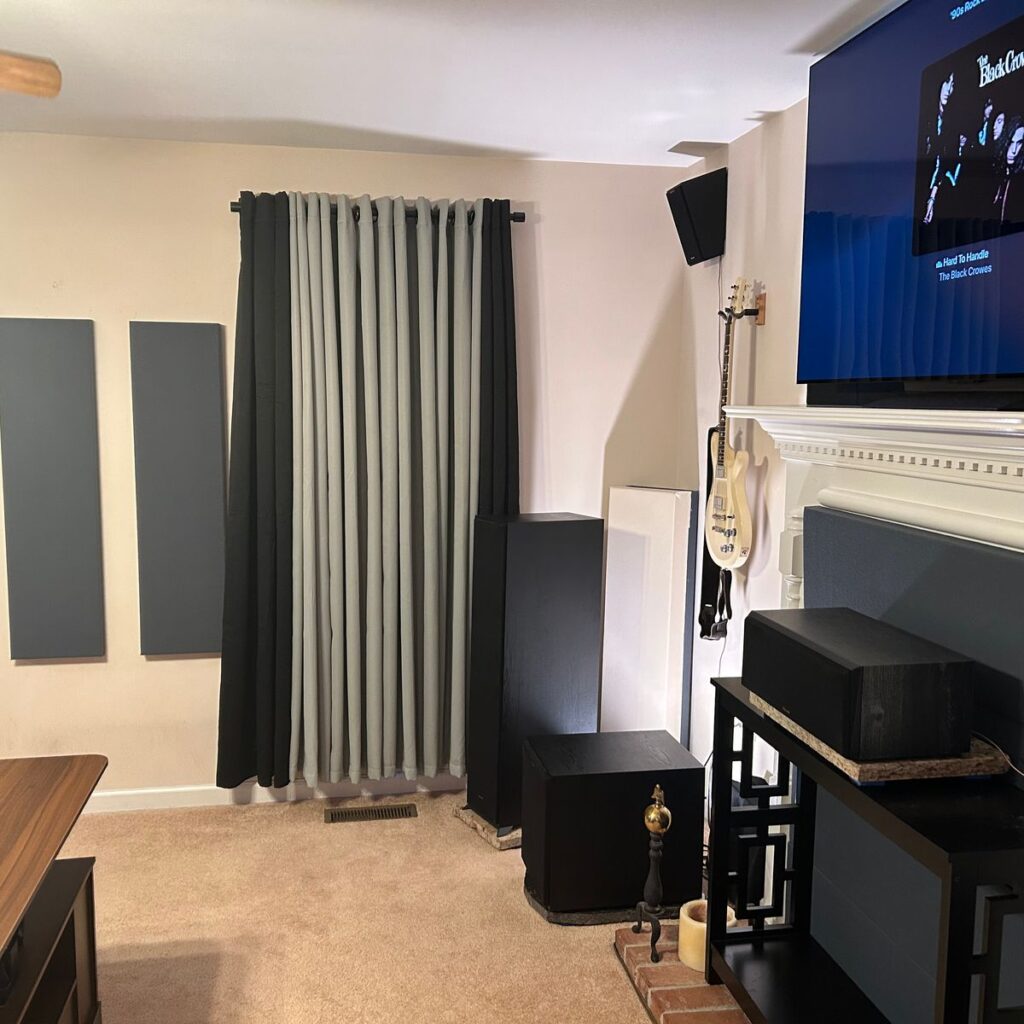

These panels are high quality and easy to wrap. I put three 2-inch panels behind each floor speaker and 2 panels in each rear corner. 4 panels to cover the brick fireplace (the fireplace is stuffed with safe n sound) and panels as needed on the side and rear reflection points. Still need a ceiling cloud. Music and movies sound incredible. There’s no going back to life without acoustic panels.
